TECHNICAL PARAMETERS SHEET
| Type | Capacity(t/h) | Feeding size(mm) | Power(kW) | Dimension(long × wide × high)m | Effciency(%) |
| C-ZM200 | 200 | ≤100 | 360 | 13.5×12×10.5 | >90 |
| C-ZM500 | 500 | ≤100 | 964 | 25×17×10 | >90 |
| C-ZM1000 | 1000 | ≤100 | 1930 | 32×26×13 | >90 |
TECHNICAL FEATURES

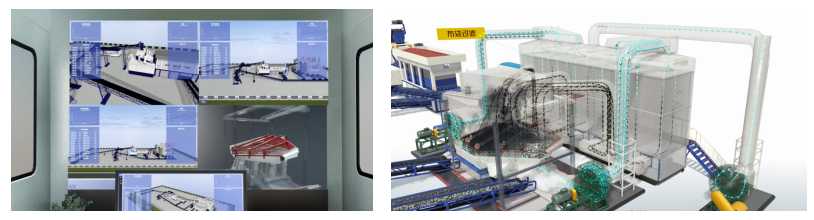

Intelligence
It can realize the intelligent cloud platform of the dry separation system, carry out cloud integration for the whole process data of dry separation, and analyze and process the coal quality information, equipment information, operation data, etc.
Environmentprotection
The highly efficient bag dedusting system independently developed is adopted to achieve clean air circulation and clean air coal separation in the whole separation process.
Large processing capacity
Breaking through the traditional deck design, the treatment capacity per unit area is increased by 40%.
High separating accuracy
Wide application range, Ep value 0.13-0.19g/cm.
Energy Saving
Through modeling and optimization of the whole system, the effciency conversion is further improved. The power consumption per ton of coal is more than 30% lower than that of traditional dry separation.

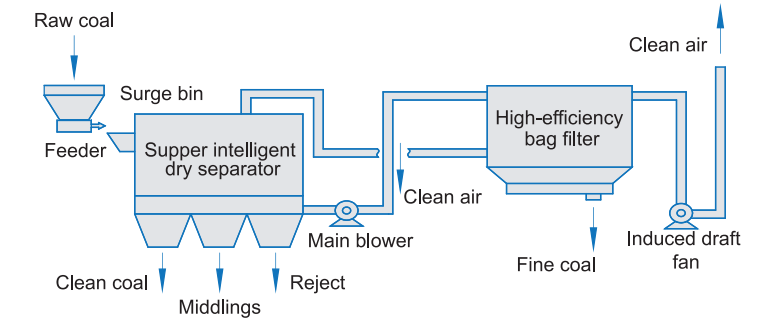

TECHNICAL PROCESS FOW CHART

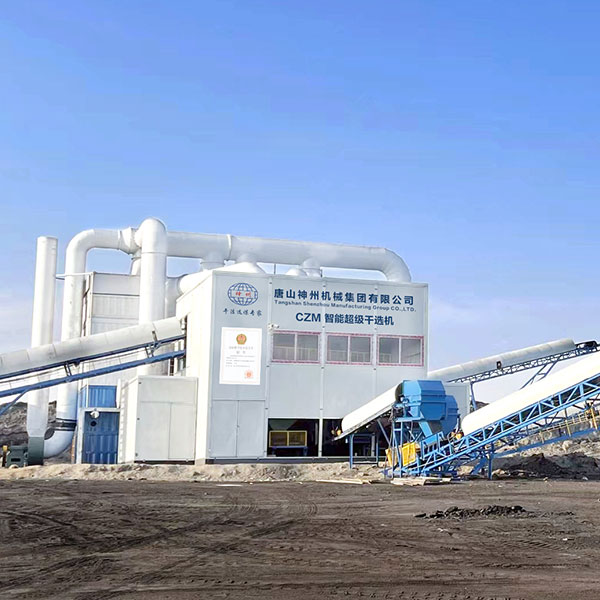

FIELD APPLICATION OF CZM INTELLIGENT SUPER DRY SEPARATOR

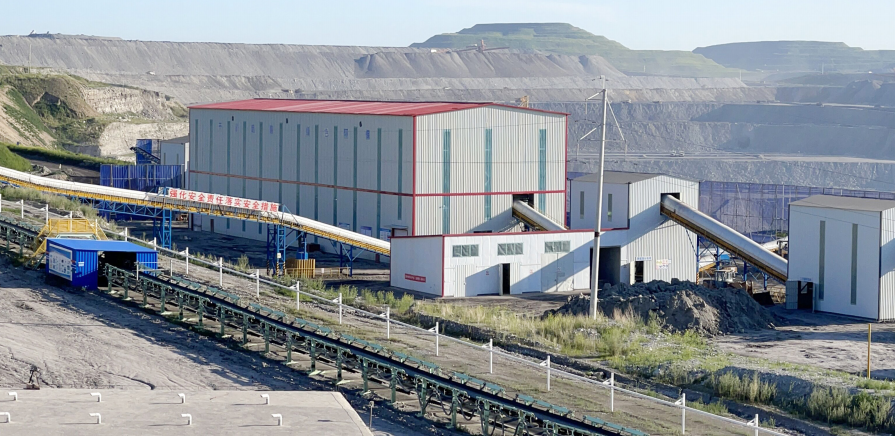

The 2.0Mt/a dry coal preparation plant of South Open pit Coal Mine of Huolinhe Open pit Coal Industry was completed and put into operation in December 2018. The full particle dry separation process was adopted. The lump raw coal entered the IDS intelligent dry separation system, and the fne raw coal entered the CZM super dry separator. All the dirty and miscellaneous coals under the pit were selected, eliminating the spontaneous combustion of the dirty and miscellaneous coals, reducing the environmental pressure in the mining area, and realizing resource recovery and comprehensive utilization. In November 2019, it won the 9th Green Manufacturing Science and Technology Progress Award.
EFFECT OF INTELLIGENT SUPER DRY SEPARATOR ON REJECT DISCHARGE IN SOUTH OPEN PIT COAL MINE
| Item | Yield Wt.% | Ash Ad.% | Low calorifc value |
| raw coal | 100 | 51.21 | 1980 |
| Clean coal | 56 | 29.68 | 3141 |
| waste | 44 | 78.61 | 502 |
